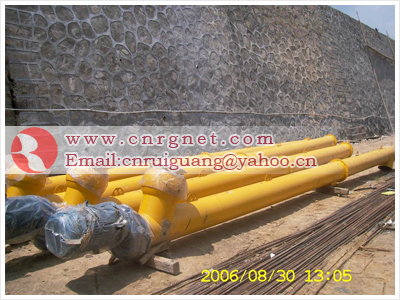

Spiral Conveyer
1、Introduction of Spiral Conveyer Machine
Spiral conveyer is one of the conveying equipment which is widely used in chemical industry, building materials, grain and so on departments. It is mainly used in transporting powdery, granulated and the small massive material. It is not suitable for transportation of instable archery target, coherent and easy to agglomerate materials
Compared with other conveyers, the spiral conveyer is with the merit of simple structure,small lateral section size, good sealing property, safe and convenient operation, lower cost of production
2、Features of Spiral Conveyer
1、Convenience for operation and maintenance
2、Flexible arrangement at entrance and exit
3、convey the mixed feed from mixing machine to pellet machine
4、Good adaptability
3、Application of Spiral Conveyer
The machine may be used for branches such as chemical industry , building material , machinery , coal , metallurgy , light industry , grain , medicine , traffic , water and electricity broadly, Being used to transport all kinds of form of powder and small piece material. Be inadvisable to transport the big viscidity packing material or large piece of material easy to go bad.
4、Working Principle of Spiral Conveyer
It makes use of rotating helical blade continuously push materials in a sealing circular cross section case and has compact structure, small cross section, light weight, good sealing performance, high convey, flexible process arrangement, convenient assembling, safe operation and other features
5、Technical Parameters of Spiral Conveyer
model |
screw diametermm |
screw pitchmm |
speedr/min |
outputm3/h |
speedr/min |
outputm3/h |
speedr/min |
outputm3/h |
speedr/min |
outputm3/h |
|
D |
S |
n |
ψ=0.33 |
n |
ψ=0.33 |
n |
ψ=0.33 |
n |
ψ=0.33 |
||
Small size |
LS100 |
100 |
100 |
140 |
2.2 |
1.2 |
1.7 |
90 |
1.4 |
71 |
1.1 |
LS125 |
125 |
125 |
125 |
3.8 |
100 |
3.0 |
80 |
2.4 |
63 |
1.9 |
|
LS160 |
160 |
160 |
112 |
7.1 |
90 |
5.7 |
71 |
4.5 |
56 |
3.6 |
|
LS200 |
200 |
200 |
100 |
12.4 |
80 |
9.9 |
63 |
7.8 |
50 |
6.2 |
|
Medium size |
LS250 |
250 |
250 |
90 |
21.8 |
71 |
17.2 |
56 |
13.6 |
45 |
10.9 |
LS315 |
315 |
315 |
80 |
38.8 |
63 |
30.5 |
50 |
24.2 |
40 |
13.4 |
|
LS400 |
400 |
355 |
71 |
62.5 |
56 |
49.3 |
45 |
38.6 |
36 |
31.7 |
|
Big size |
LS500 |
500 |
400 |
63 |
97.7 |
50 |
77.6 |
40 |
62.0 |
32 |
49.6 |
LS630 |
630 |
450 |
50 |
138.5 |
40 |
110.8 |
32 |
88.6 |
25 |
69.3 |
|
LS800 |
800 |
500 |
40 |
198.5 |
32 |
158.8 |
25 |
124.1 |
20 |
99.3 |
|
Giant size |
LS1000 |
1000 |
560 |
32 |
277.9 |
25 |
217.1 |
20 |
173.1 |
16 |
139.0 |
LS1250 |
1250 |
630 |
25 |
381.7 |
20 |
305.4 |
16 |
244.3 |
13 |
198.5 |
